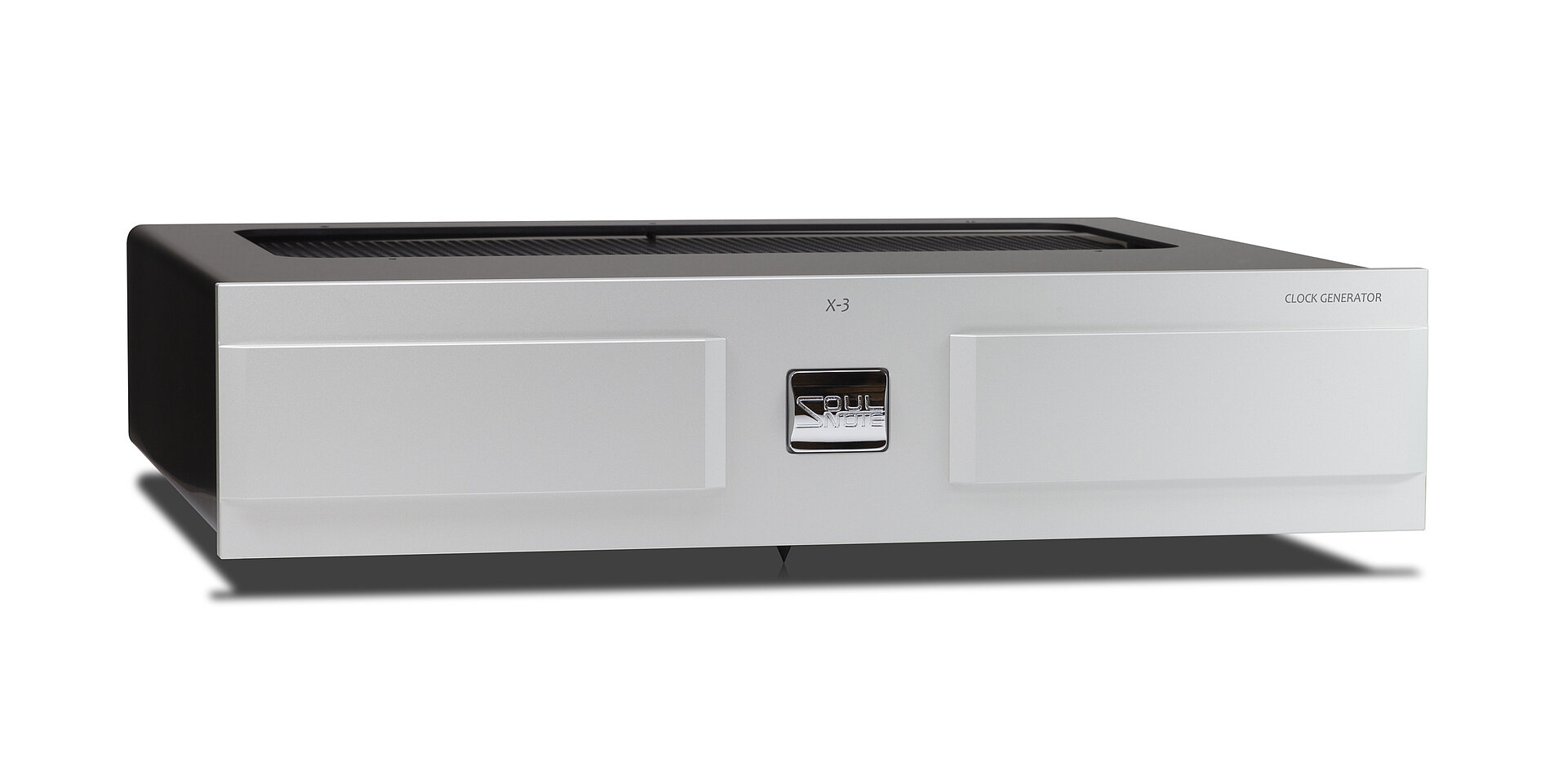

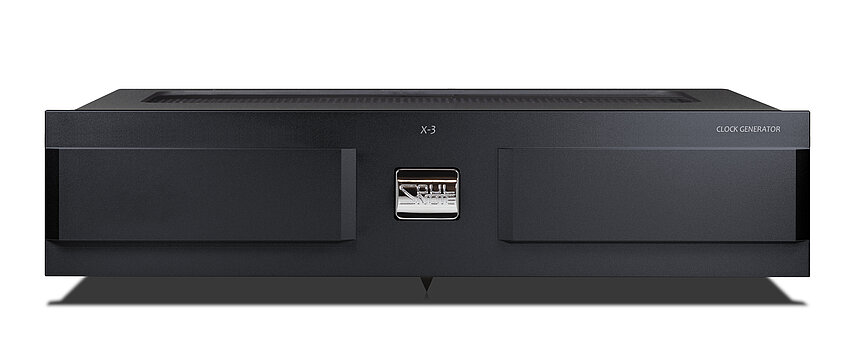

SOULNOTE X-3
CLOCK GENERATOR Silver / Black
TECHNOLOGY

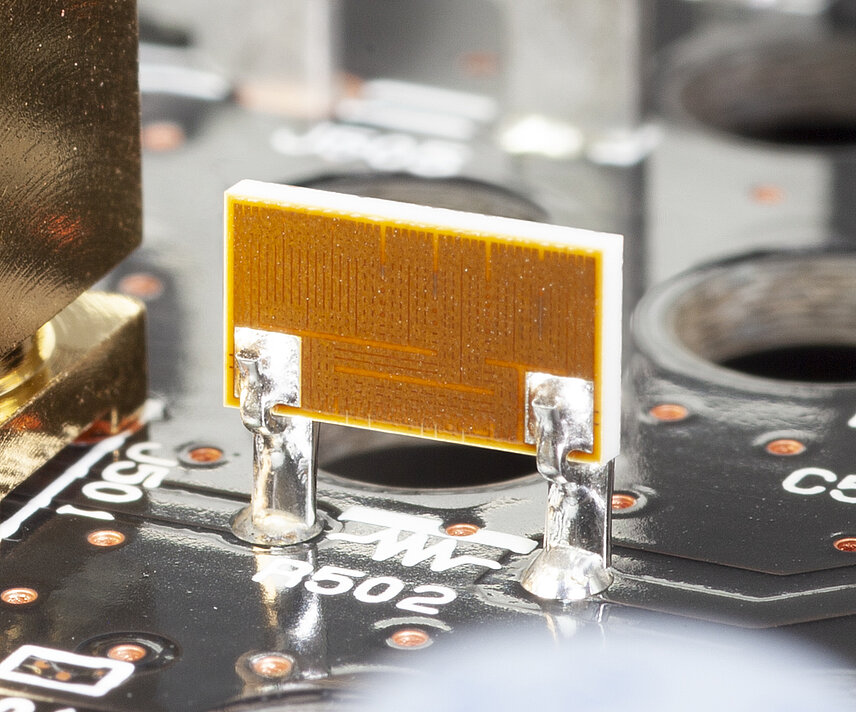

Naked foil resistors
As they greatly impact clock sound quality, the output resistors employ naked foil resistors adapted from artificial satellite grade ultra-high precision resistors, with exceptional thermal properties and low thermal noise. We believe that at this stage, this is where extraordinary resistors are most effective.
SC Cut ultra low phase noise OCXO
The X-3 incorporates an SC Cut ultra low phase noise OXCO (thermostatic bath-type crystal oscillator) selected for its unprecedented sound quality.

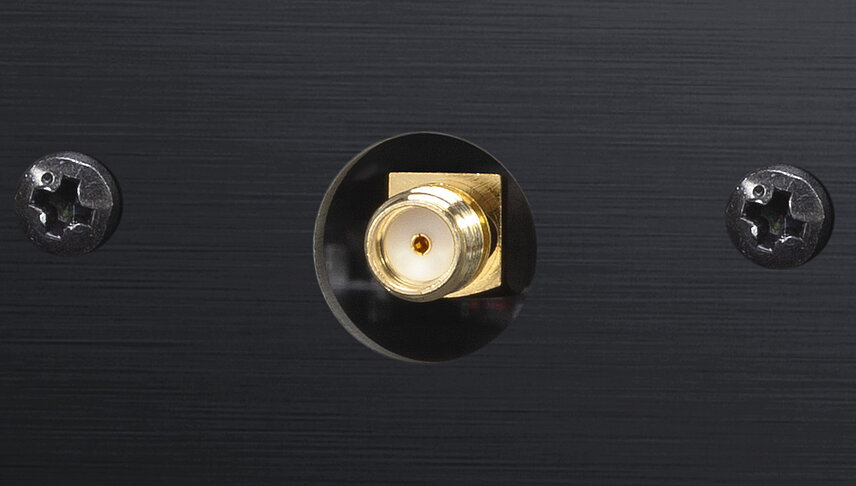

SMA output terminal
The output clock signal originates from an SMA terminal with specs above 20 GHz. Only one output is provided for the ultimate sound quality. The X-3 is supplied with an SMA–SMA 50ohm dedicated clock cable, but we highly recommend using the optional RCC-1 clock cable. Relive music that unleashes the ambiences of the soul.

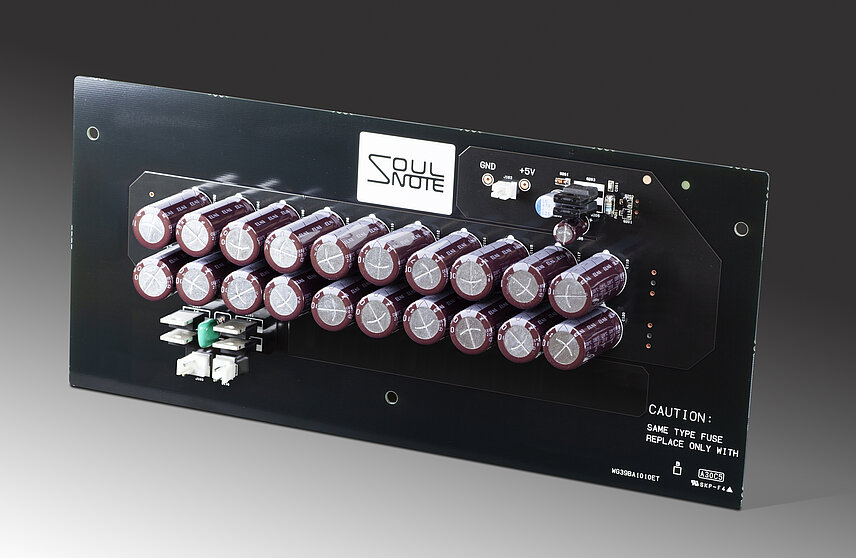

Non-NFB power supply
An overwhelmingly large capacity 200VA toroidal transformer of 100w power amplifier class is used for the current required for the crystal oscillator. The Ultra-high speed SIC diodes are newly adopted for rectifier diodes. The rectifier group is composed of numerous low-magnification, electrolytic capacitors of small size connected in parallel, while the regulator incorporates SOULNOTE’s unique non-NFB discrete power supply.
Quiet power supply domain
All unnecessary circuits like power supply LEDs, relays, etc. have been stripped from the crystal oscillator to provide a super-quiet power supply domain.
Housing prioritizing sound quality
The X-3 housing adopts unique new design. The housing consolidates features like air dump elimination through a dual non-rigid top plate, non-rigid AC inlets and - output terminals, three spike supports directly under the transformers, titanium washers, carbon washers, and more. Our core expertise has developed the highest sound quality.

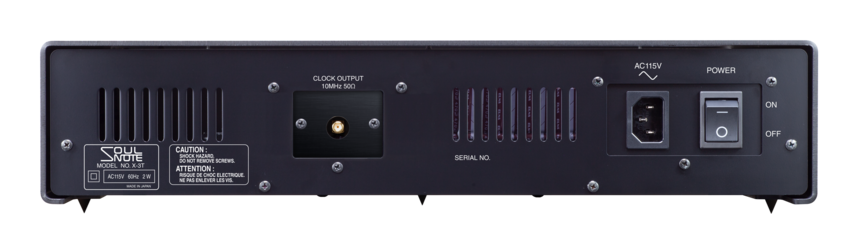

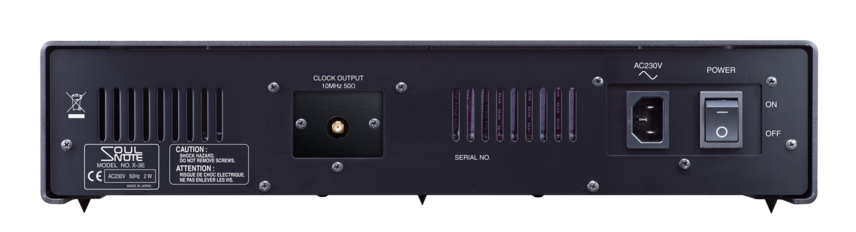

Rear panel
SPECIFICATIONS
| Output | SMA x 1 |
| Output frequency | 10MHz |
| Output impedance | 50Ω |
| Output level | 1.0Vp-p |
| Power Voltage | 230V AC 50Hz / 115V AC 60Hz |
| Power Consumption | 2W |
| Dimensions | 430(W) × 111(H) × 376(D) mm |
| Weight | 7.5kg |
| Included Accessories | SMA–SMA dedicated clock cable, SMA–BNC converter plug, Spikes, Power cable |
